Gallery
Inside View of Plant 2, 5Ton capacity Overhead Crane; welding fixtures for Spacer Frame welding are seen in the photograph.
This is how folding Anchor will look after folding – compact – Space saving on boat.
Hook type Anchor is another anchor devloped by VT.
Welding in Progress, Cating corner can be seen in the right hand side corner.
Fabrication in Progress.

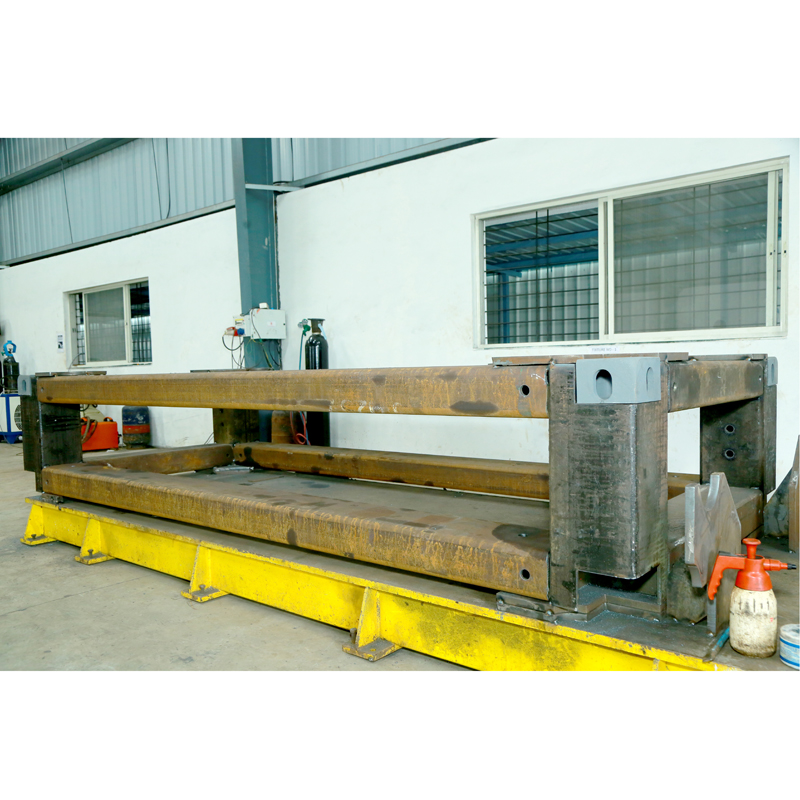

Spacer Frame on Welding Fixture.

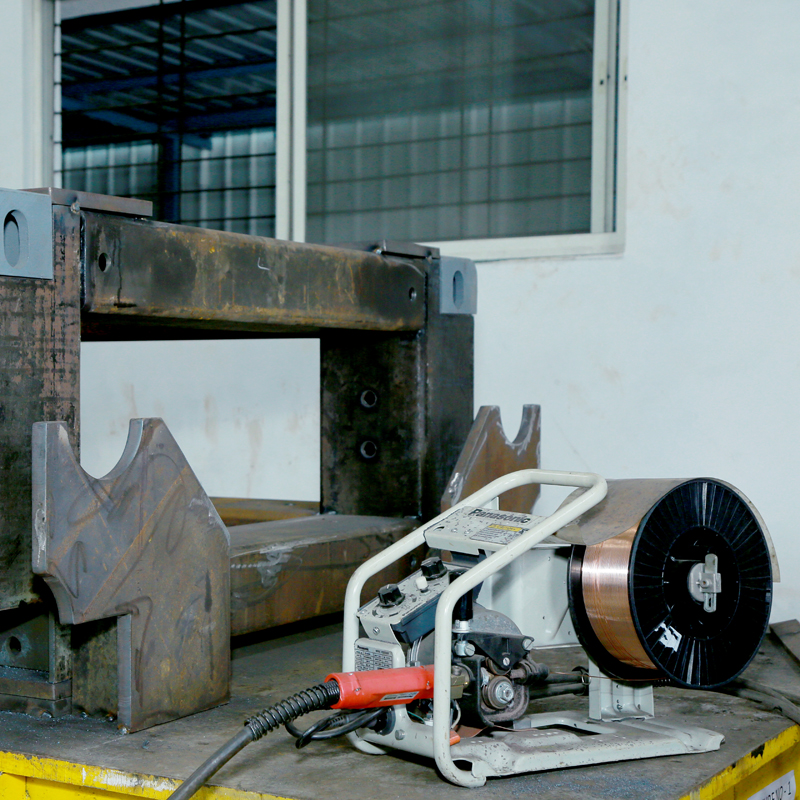

Wire Spool and wire feeder.

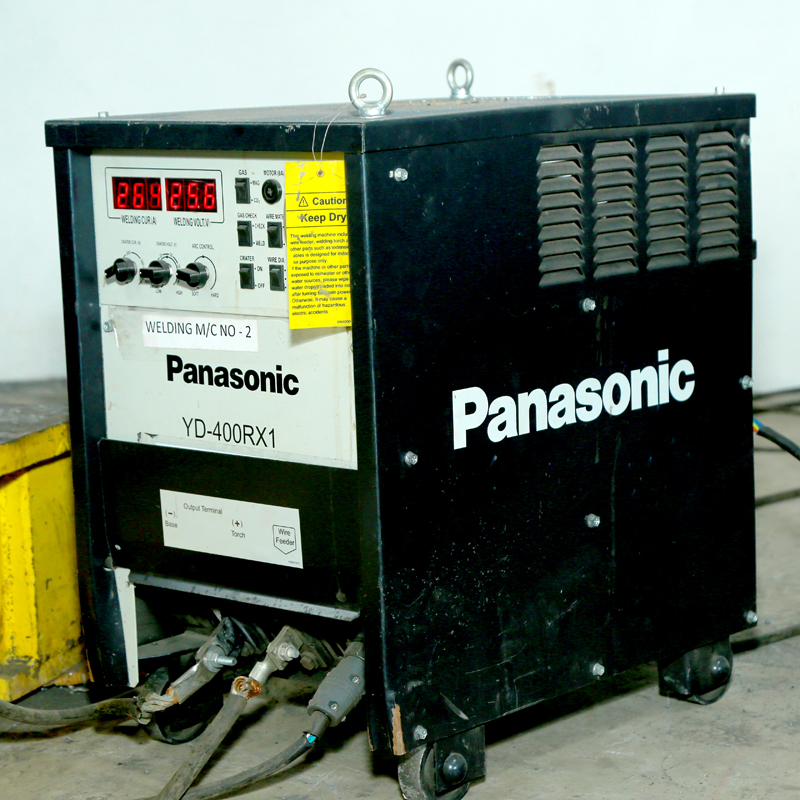

Inverter Based Welding Machine – Panasonic make. 400Amps
Welding Machine and Wire feeder in one view.
Casting Corner fit up on Spacer Frame.
Casting Corner before fit up.

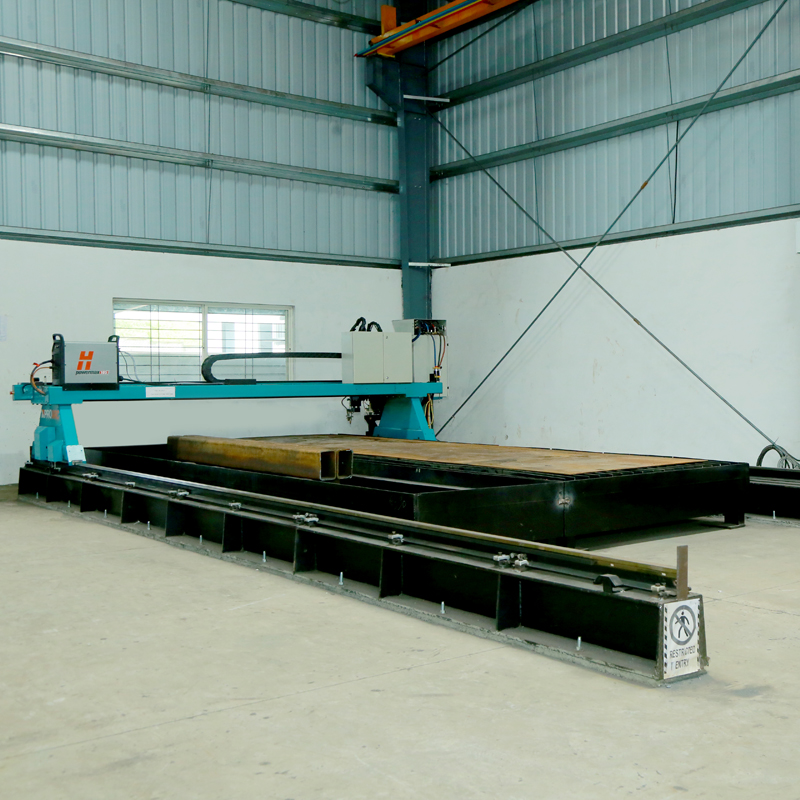

Inside View of Plant 1, CNC – Plasma and CNC Oxy Fuel cutting of 6 meter by 4 meter, Also sen 5 HP compressor with 40CFM dryer.
CNC Plasma Cutting – Hypertherm USA make, 100Amp Capacity suitable for cutting upto 20mm thick sheet. CNC oxy fuel cutting machine Capcity upto 200mm thick sheet cutting. Machine suitable to cut Sheet and Pipe. Cutting table area = 3m width by 8 meter length.
3 axes CNC Ctting Machine PROARC make.
3 axes CNC Ctting Machine PROARC make, PROMOCUT Model – Front view.
View of The Oxy Fuel Cutting Torch and Plasma cutting Torch and Control panel operation.
Frame Welding in Progress.
Total Set up at one of the Fabrication station.

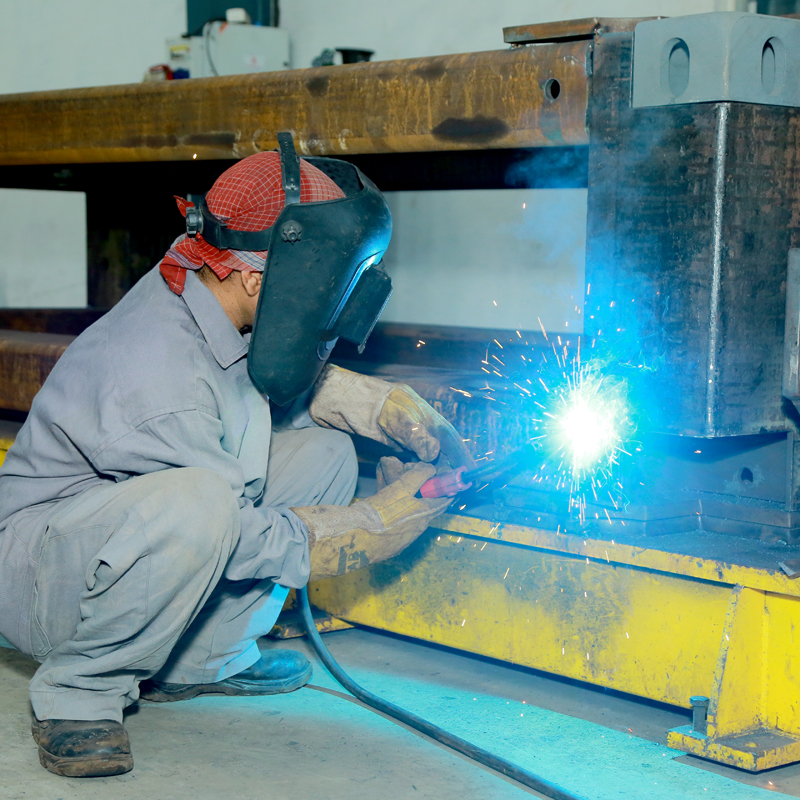

Co2 MIG welding in Progress.
Co2 MIG welding in Progress.
Co2 MIG welding in Progress.
Co2 MIG welding in Progress.
Plasma cutting in Progress.
Plasma cutting of the Sheet in progress.
Top Clamp with PUR pad assembled.
Close View of Oxy Fuel Torch and Plasma Cutting Torch on CNC cutting machine.

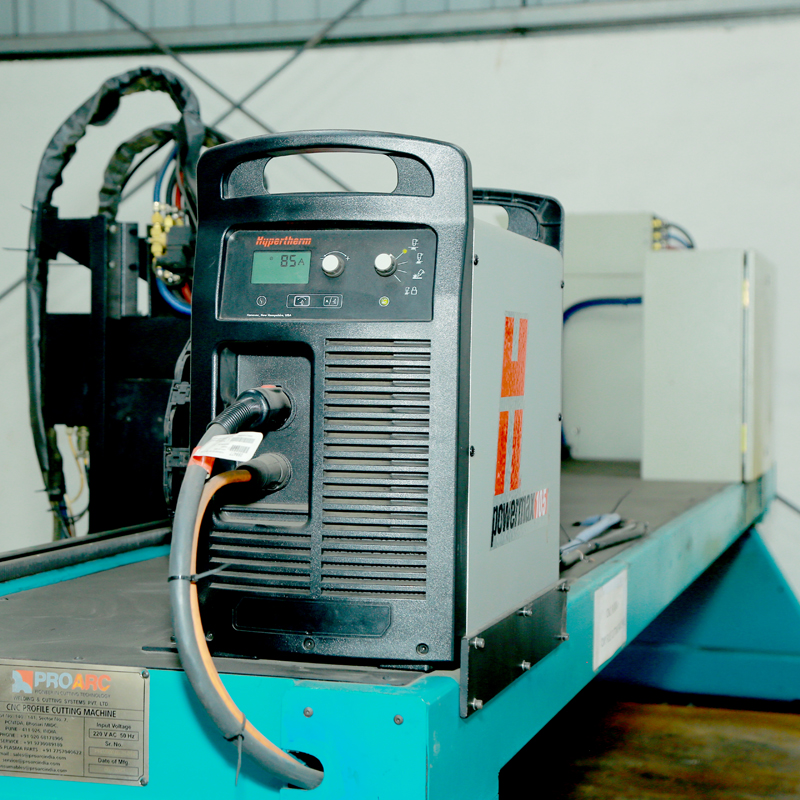

Hypertherm Plasma Cutting – Current setting.
Plasma Cutting Torch cutting hole in tube.
Plasma cutting Torch sensing the metal surface of the tube.
Plasma Cutting of Tube in Progress.
Plasma Cutting of Tube in Progress.
Plasma Cutting of Tube in Progress.
Plasma Cutting of Tube in Progress.
Plasma Cutting of Tube in Progress.
Loading of Tube for Plasma cutting.
Plasma Cutting of Tube in Progress.
Plasma Cutting of Tube in Progress.
Side View of Spacer Frame SW-022905 after HDG.
Anaother view of Spacer Frame SW-022905.
Other view of Solar Invertor Frame of MARICI solar- Fimer group Italy.
Inside View of Plant 2, 5Ton capacity Overhead Crane; welding fixtures for Spacer Frame welding are seen in the photograph.

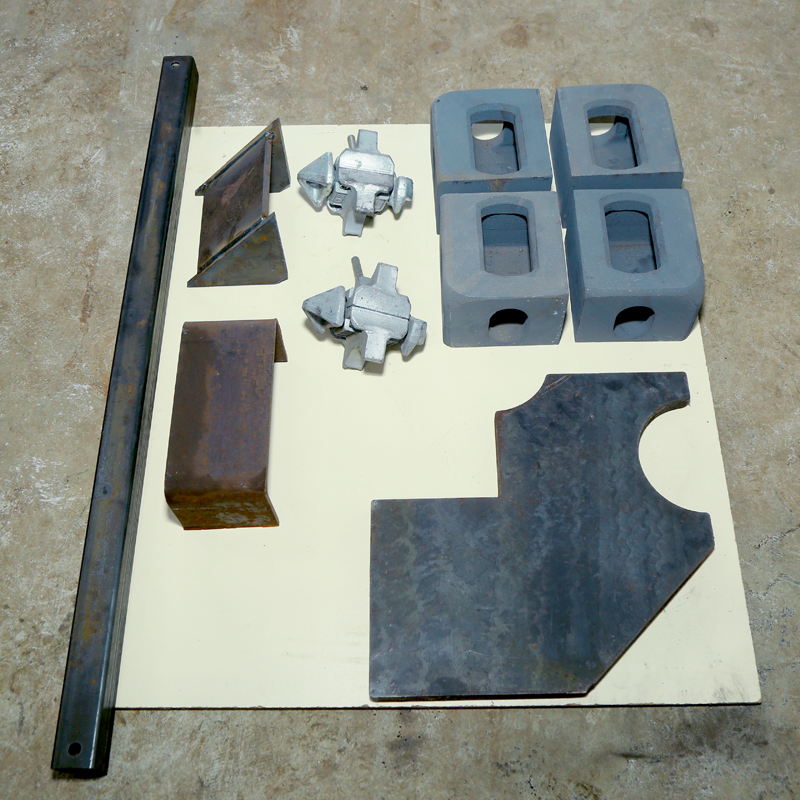

Parts Photogrphs – Standard parts like Casting corners and Twist Locks, Welded Sub Assemblies & Child parts cut form Sheet and Tube.
Anaother view of some of the parts.
Cut Child part – Corner Bracket.
Cut and Bend part – Forklift Bracket.
Corner Gusset – Full welding Fillet.
Inside welding in Corner Gusset.
Twist Lock – 50 Ton Capacity.
Twist Lock – 50 Ton Capacity.

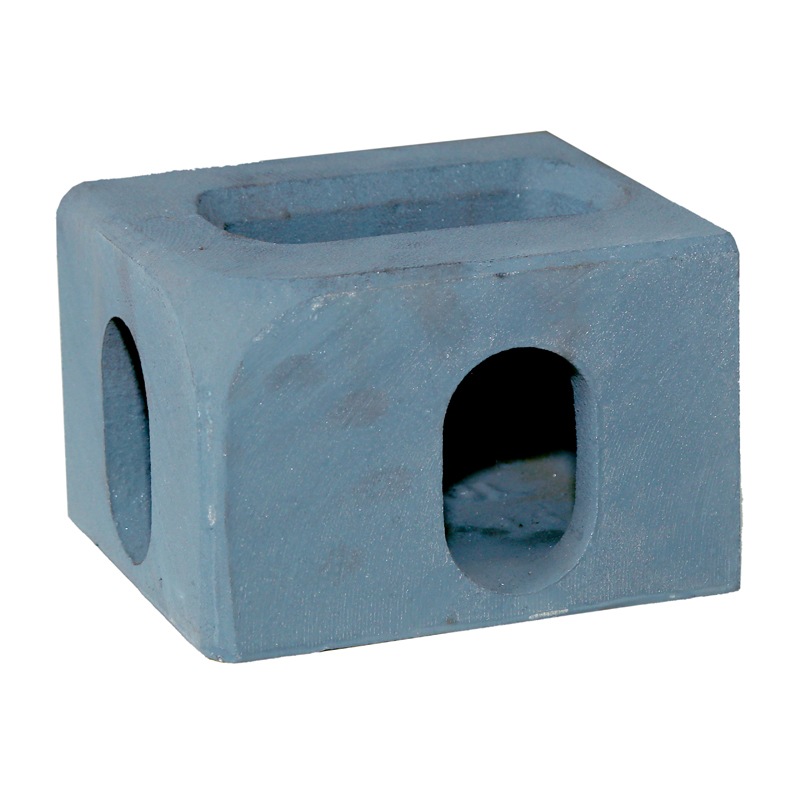

Casting Corner.
V-Transsystem Technology Pvt. Ltd. Plant 2.
V-Transsystem Technology Pvt. Ltd. Plant 2.
